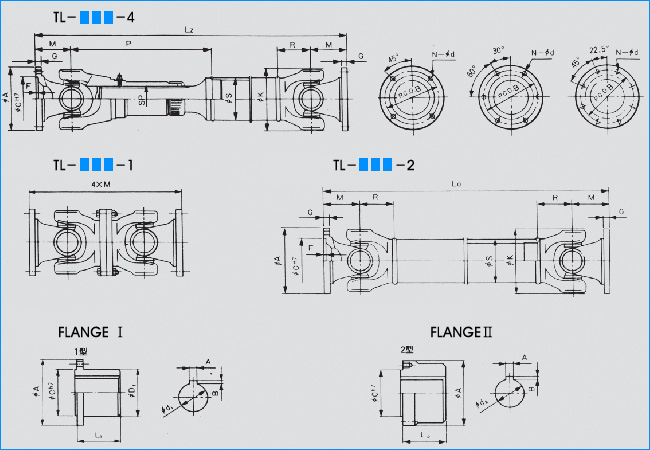

Universal
Joint
Size

TL-58

TL-65

TL-75

TL-90

TL-100

TL-120

TL-150

TL-160

TL-180

TL-200

TL-225

373.20

373.20

273.30

273.00

287.10

287.20

287.30

287.30

287.40

287.40

287.40

허용

토오크

Mb kgf·m

11

15

40

70

95

150

350

350

520

520

900

Mz

kgf·m

15

25

55

90

125

185

480

480

670

670

1170

허용

작동각

β°

30°

30°

30°

25°

25°

20°

20°

20°

22°

22°

22°

D

I

M

E

N

S

I

O

N

S

ØA

58

65

75

90

100

120

150

160

180

200

225

P.C.DB

47

52

62

74.5

84

101.5

130

140

155.5

175

196

ØC^H7

30

35

42

47

57

75

90

100

110

125

140

F

1.5

2

2

2.5

2.5

2.5

3

40

3

5

5

G

3.5

4.5

5.5

6

7

8

10

10

12

14

15

M

32

35.5

40

45

46

60

80

80

80

80

108

P

127

142

169

188

217

330

335

335

355

355

450

R

36

36

45

58

55

65

75

75

95

95

115

SP

21

21

32

39

39

45

54

54

60

60

82

ØS

32

32

45

50.8

63.5

76.3

90

90

101.6

101.6

120

ØK

52

60

70

86

98

115

145

155

174

190

205

N

4

4

4

4

6

8

8

8

8

8

8

Ød

5

6

6

8

8

10

12

12

14

14

16

Spline
Stroke

+

14

14

20

25

30

35

40

40

45

45

50

-

14

14

15

15

15

20

20

26

33

33

40

Flange

Ⅰ

Ød₁

20

25

30

35

40

50

60

70

80

85

100

ØD₁

35

40

50

55

64

80

105

110

125

130

160

L₁

30

40

48

55

63

80

90

110

125

140

160

Ⅱ

Ød₂

35

40

45

55

60

70

90

95

110

120

135

L₂

56

63

70

90

90

110

140

160

180

180

220

Bolt

Size x ℓ

M5X14ℓ

M6X18ℓ

M6X20ℓ

M8X25ℓ

M8X25ℓ

M10X30ℓ

M12X40ℓ

M14X40ℓ

M14X45ℓ

M14X45ℓ

M16X50ℓ
