GEAR G 联轴器
GEAR G 联轴器
￥0.00
- 产品详情
- 产品参数
|

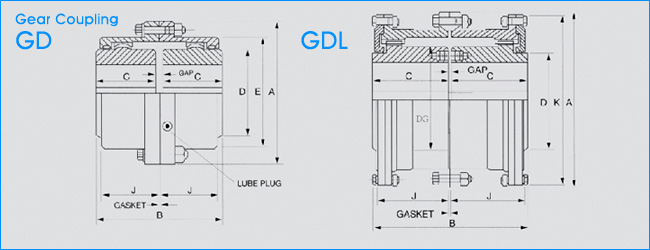

GD Dimensions
| Size | Max. Speed (rpm) | Basic Torque (kg·cm) | Bore Dia (mm) | Dimensions(mm) | Cplg wt(kg) | Lube wt(kg) | |||||||
| A | B | C | D | E | J | Gap | |||||||
| Max. | Min. | ||||||||||||
| 10GD | 8,000 | 8,594 | 48 | 13 | 116 | 89 | 43 | 69 | 84 | 39 | 3 | 4.5 | 0.04 |
| 15GD | 6,500 | 19,337 | 60 | 19 | 152 | 101 | 49 | 86 | 105 | 48 | 3 | 9.1 | 0.07 |
| 20GD | 5,600 | 35,810 | 73 | 25 | 178 | 127 | 62 | 105 | 126 | 59 | 3 | 15.9 | 0.11 |
| 25GD | 5,000 | 64,458 | 92 | 32 | 213 | 159 | 77 | 131 | 155 | 72 | 5 | 25.9 | 0.23 |
| 30GD | 4,400 | 107,430 | 105 | 38 | 240 | 187 | 91 | 152 | 180 | 84 | 5 | 43.1 | 0.36 |
| 35GD | 3,900 | 164,726 | 124 | 51 | 279 | 218 | 106 | 178 | 211 | 98 | 6 | 68.0 | 0.54 |
| 40GD | 3,600 | 250,670 | 146 | 64 | 318 | 248 | 121 | 210 | 245 | 111 | 6 | 97.5 | 0.91 |
| 45GD | 3,200 | 343,776 | 165 | 76 | 346 | 278 | 135 | 235 | 274 | 123 | 8 | 136.1 | 1.04 |
| 50GD | 2,900 | 608,770 | 178 | 89 | 389 | 314 | 153 | 254 | 306 | 141 | 8 | 190.5 | 0.77 |
| 55GD | 2,650 | 608,770 | 197 | 102 | 425 | 344 | 168 | 279 | 334 | 158 | 8 | 249.5 | 2.22 |
| 60GD | 2,450 | 787,820 | 222 | 114 | 457 | 384 | 188 | 305 | 336 | 159 | 8 | 306.2 | 3.18 |
GDL Dimensions
| Size | Max. Speed (rpm) | Basic Torque (kg·cm) | Bore Dia (mm) | Dimesions(mm) | Cplg wt(kg) | Lube wt(kg) | ||||||||
| A | B | C | D | DG | J | K | Gap | |||||||
| Max. | Min. | |||||||||||||
| 70GDL | 2,150 | 1,145,920 | 254 | 89 | 527 | 451.5 | 221 | 343 | 356 | 196 | 517 | 9.5 | 485.4 | 4.35 |
| 80GDL | 1,750 | 1,504,020 | 279 | 102 | 591 | 507.5 | 249 | 356 | 368 | 243 | 572 | 9.5 | 703.1 | 9.53 |
| 90GDL | 1,550 | 2,041,170 | 305 | 114 | 660 | 565 | 276 | 394 | 419 | 265 | 641 | 13 | 984.3 | 12.25 |
| 100GDL | 1,450 | 2,864,800 | 343 | 127 | 711 | 623 | 305 | 445 | 470 | 294 | 699 | 13 | 1302.0 | 14.97 |
| 110GDL | 1,330 | 3,939,100 | 387 | 140 | 775 | 679 | 333 | 495 | 521 | 322 | 749 | 13 | 1678.3 | 17.69 |
| 120GDL | 1,200 | 5,013,400 | 425 | 152 | 838 | 719 | 353 | 546 | 572 | 341 | 826 | 13 | 2113.8 | 20.87 |
1. Coupling 중량은 내경가공이 되지 않은 상태의 수치입니다.
编号
A009
价格
面议
商城价
￥0.00
